EXTRA SHORT ENDMILLS 5 FLUTE

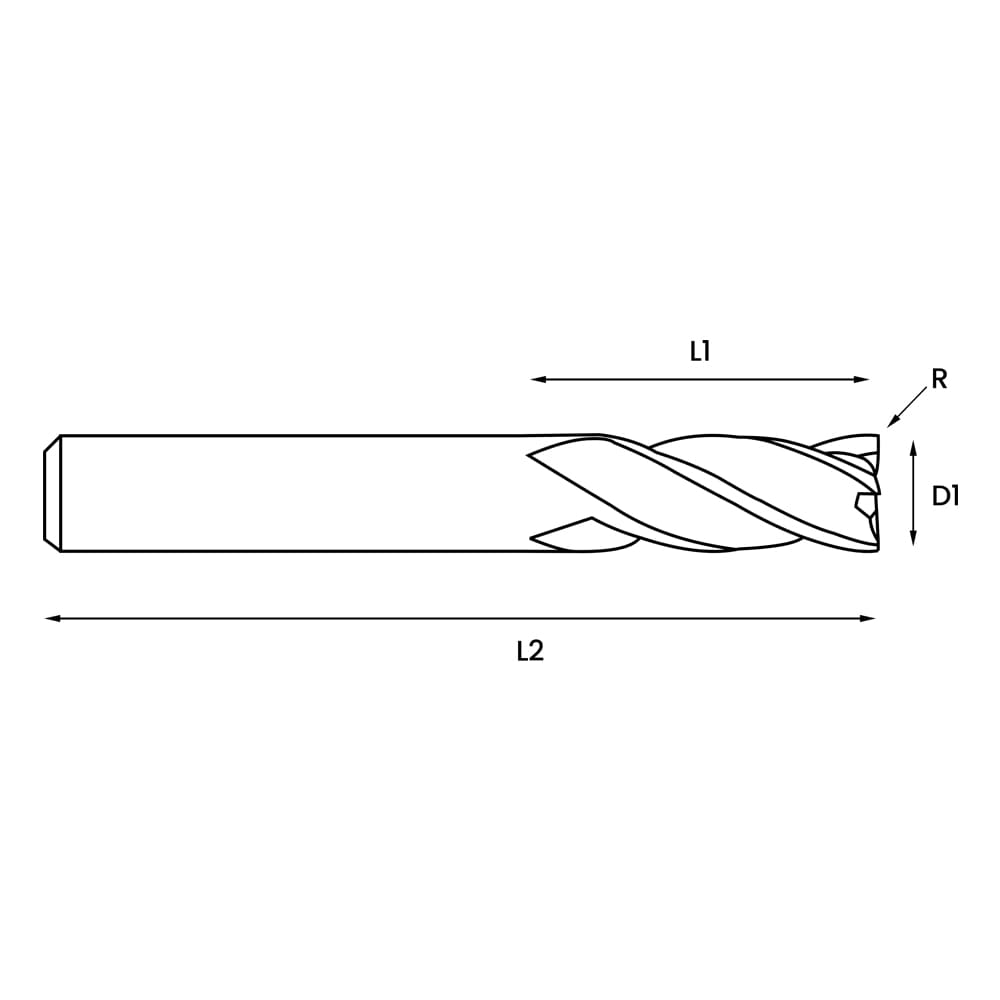

| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R0.2 | 6 | 6 | 40 | 0.2 |
| ENG-EMES-0800-5-R0.2 | 8 | 8 | 40 | 0.2 |
| ENG-EMES-1000-5-R0.2 | 10 | 10 | 50 | 0.2 |
| ENG-EMES-1200-5-R0.2 | 12 | 10 | 55 | 0.2 |
| ENG-EMES-1600-5-R0.2 | 16 | 12 | 55 | 0.2 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R0.4 | 6 | 6 | 40 | 0.4 |
| ENG-EMES-0800-5-R0.4 | 8 | 8 | 40 | 0.4 |
| ENG-EMES-1000-5-R0.4 | 10 | 10 | 50 | 0.4 |
| ENG-EMES-1200-5-R0.4 | 12 | 10 | 55 | 0.4 |
| ENG-EMES-1600-5-R0.4 | 16 | 12 | 55 | 0.4 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R0.5 | 6 | 6 | 40 | 0.5 |
| ENG-EMES-0800-5-R0.5 | 8 | 8 | 40 | 0.5 |
| ENG-EMES-1000-5-R0.5 | 10 | 10 | 50 | 0.5 |
| ENG-EMES-1200-5-R0.5 | 12 | 10 | 55 | 0.5 |
| ENG-EMES-1600-5-R0.5 | 16 | 12 | 55 | 0.5 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R0.75 | 6 | 6 | 40 | 0.75 |
| ENG-EMES-0800-5-R0.75 | 8 | 8 | 40 | 0.75 |
| ENG-EMES-1000-5-R0.75 | 10 | 10 | 50 | 0.75 |
| ENG-EMES-1200-5-R0.75 | 12 | 10 | 55 | 0.75 |
| ENG-EMES-1600-5-R0.75 | 16 | 12 | 55 | 0.75 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R0.8 | 6 | 6 | 40 | 0.8 |
| ENG-EMES-0800-5-R0.8 | 8 | 8 | 40 | 0.8 |
| ENG-EMES-1000-5-R0.8 | 10 | 10 | 50 | 0.8 |
| ENG-EMES-1200-5-R0.8 | 12 | 10 | 55 | 0.8 |
| ENG-EMES-1600-5-R0.8 | 16 | 12 | 55 | 0.8 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R1.2 | 6 | 6 | 40 | 1.2 |
| ENG-EMES-0800-5-R1.2 | 8 | 8 | 40 | 1.2 |
| ENG-EMES-1000-5-R1.2 | 10 | 10 | 50 | 1.2 |
| ENG-EMES-1200-5-R1.2 | 12 | 10 | 55 | 1.2 |
| ENG-EMES-1600-5-R1.2 | 16 | 12 | 55 | 1.2 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R1.5 | 6 | 6 | 40 | 1.5 |
| ENG-EMES-0800-5-R1.5 | 8 | 8 | 40 | 1.5 |
| ENG-EMES-1000-5-R1.5 | 10 | 10 | 50 | 1.5 |
| ENG-EMES-1200-5-R1.5 | 12 | 10 | 55 | 1.5 |
| ENG-EMES-1600-5-R1.5 | 16 | 12 | 55 | 1.5 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R1.6 | 6 | 6 | 40 | 1.6 |
| ENG-EMES-0800-5-R1.6 | 8 | 8 | 40 | 1.6 |
| ENG-EMES-1000-5-R1.6 | 10 | 10 | 50 | 1.6 |
| ENG-EMES-1200-5-R1.6 | 12 | 10 | 55 | 1.6 |
| ENG-EMES-1600-5-R1.6 | 16 | 12 | 55 | 1.6 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0600-5-R2.4 | 6 | 6 | 40 | 2.4 |
| ENG-EMES-0800-5-R2.4 | 8 | 8 | 40 | 2.4 |
| ENG-EMES-1000-5-R2.4 | 10 | 10 | 50 | 2.4 |
| ENG-EMES-1200-5-R2.4 | 12 | 10 | 55 | 2.4 |
| ENG-EMES-1600-5-R2.4 | 16 | 12 | 55 | 2.4 |
| CODE | SIZE(D1) | FLUTE LENGTH(L1) | OVERALL LENGTH(L2) | RADIUS(R) |
| ENG-EMES-0800-5-R3.6 | 8 | 8 | 40 | 3.6 |
| ENG-EMES-1000-5-R3.6 | 10 | 10 | 50 | 3.6 |
| ENG-EMES-1200-5-R3.6 | 12 | 10 | 55 | 3.6 |
| ENG-EMES-1600-5-R3.6 | 16 | 12 | 55 | 3.6 |
